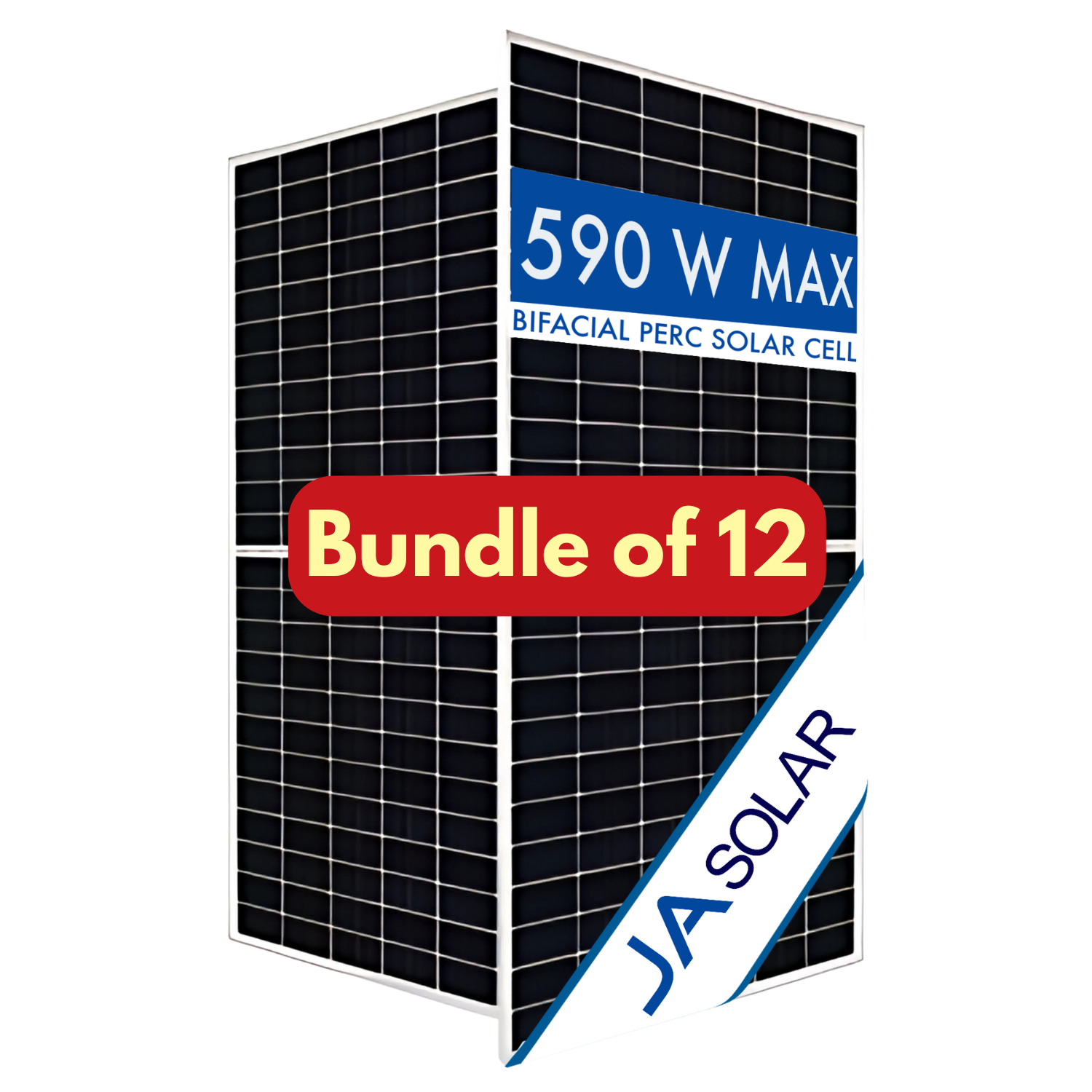

Please note this listing is for a bundle of 12 panels, which are priced at $259/ea = $3,108 total + tax and shipping.

JA Solar 590W bifacial panels are assembled with 11BB PERCIUM cells in half cut configuration with glass on front and back. This double glass bifacial design allows for energy production via the light reflected from the ground or other objects behind the panel. This provides an overall higher energy output, lower temperature coefficient, less shading loss, and higher tolerance for mechanical loading.

590W 156cell mono PERC JA Solar Deep Blue 3.0 Bifacial MC4 Black-White 35mm, 1500mm cables

Technical Details

• Manufacturer: JA Solar
• Manufacturer Part Number: JAM78D30-590/MB
• Watt: 590
• Number of cells: 156 (78)
• Cell Type: Bifacial
• Backsheet Color: White
• Frame Color: Silver
• Voltage (Vmp): 44.80 Volt
• Voltage (Voc): 53.30 Volt
• Current (Imp): 13.17 Amp
• Current (Isc): 13.93 Amp
• Max. Series Fuse Rating: 30 Amp
• Shipping Weight: 77 lb
• Warranty: 30 Year Power / 12 Year Product

Quantity Discounts Available!

• 1 Panel = $299/panel or $0.507 per Watt
• 6 Panels = $280/panel or $0.475 per Watt
• 12 Panels = $259/panel or $0.439 per Watt (this listing)
• Full Pallet (31 Panels) = $225/panel or $0.364 per Watt

The Cabin Depot™ has a wide selection of solar panels to choose from which can satisfy any application. Check out our Solar Panel Collection to learn more!

Download:

• 590W JA Solar Bifacial Data Sheet
• 550W JA Solar Bifacial Installation Manual
• 550W JA Solar Bifacial Warranty
