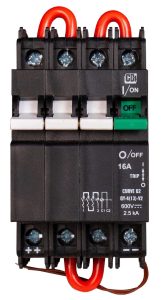

MNEPV16-600RT

16 Amp 600 VDC Din Rail Mount Breaker. All MidNite Circuit Breakers Can Be Used At 100% Rated Current When Mounted In A MidNite Enclosure.

Read About The 165 VDC ETL TEST STORY

MidNite’s Breakers Are Rated To Break The Full Rated Load At The Rated Voltage Repeatedly, With NO DAMAGE. Always Use A Properly Sized Breaker For Disconnecting.

• POLARIZED
• Environmental Rating – Type 1 (Indoor)
• Breaker Torque Value: 20 In-Lbs (2.3NM)
• Current Rating – 16A
• DC Voltage Rating – 600VDC
• Wire Size Range – 14 To 6 AWG
• Width – 2 Inches (52mm)
• Number Of Poles – 4
• Warranty – 5 Yrs
• Listed For US & Canada When Used In MidNite Solar Enclosures
• A Case Contains 2 Breakers.

16A Solar Panel Breaker
