NOCO 15A Onboard Battery Charger 3 Bank
Original price was: $314.99.$188.99Current price is: $188.99.
NOCO 15A Onboard Battery Charger 3 Bank

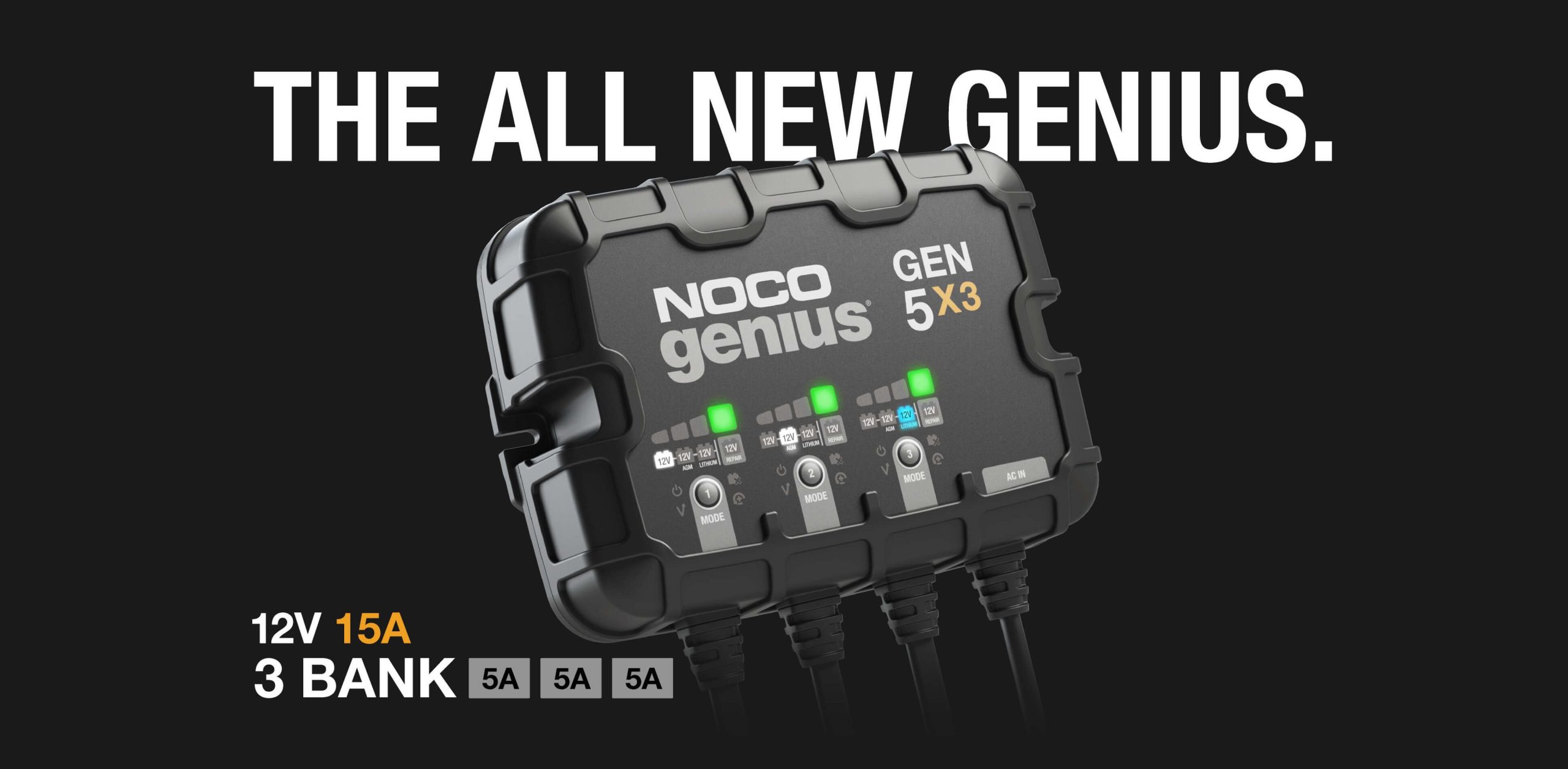

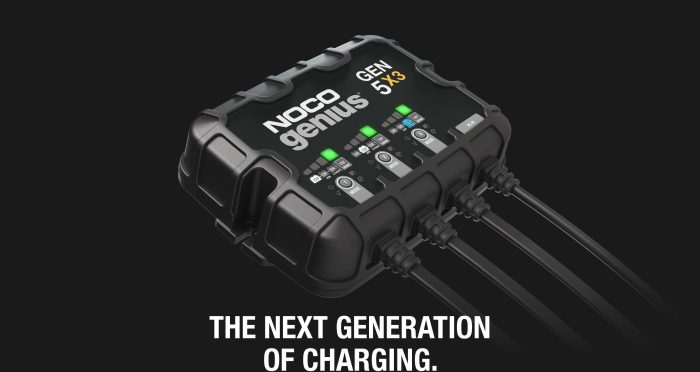

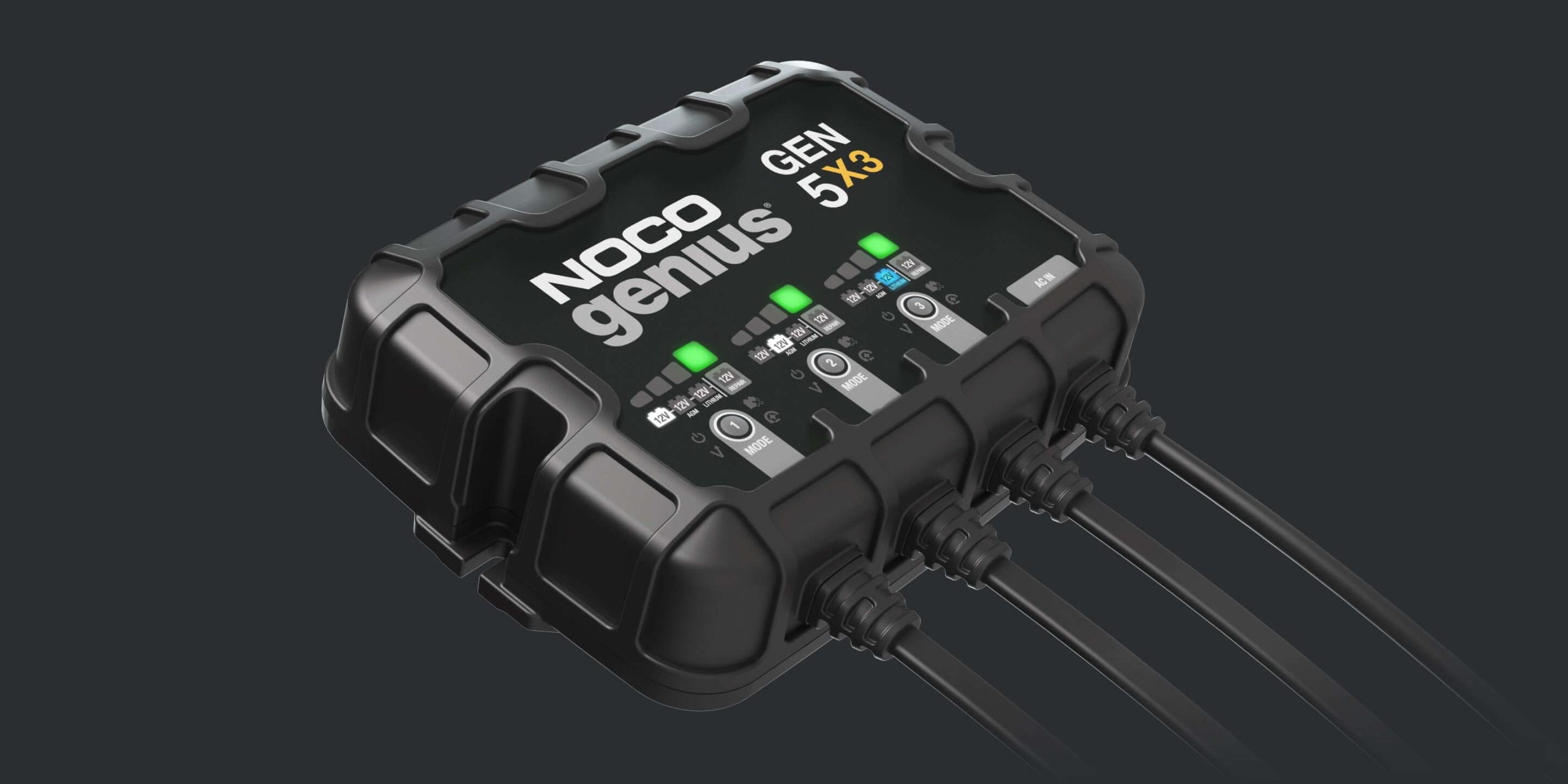

3-Bank, 15-Amp On-Board Battery Charger, Battery Maintainer, and Battery Desulfator

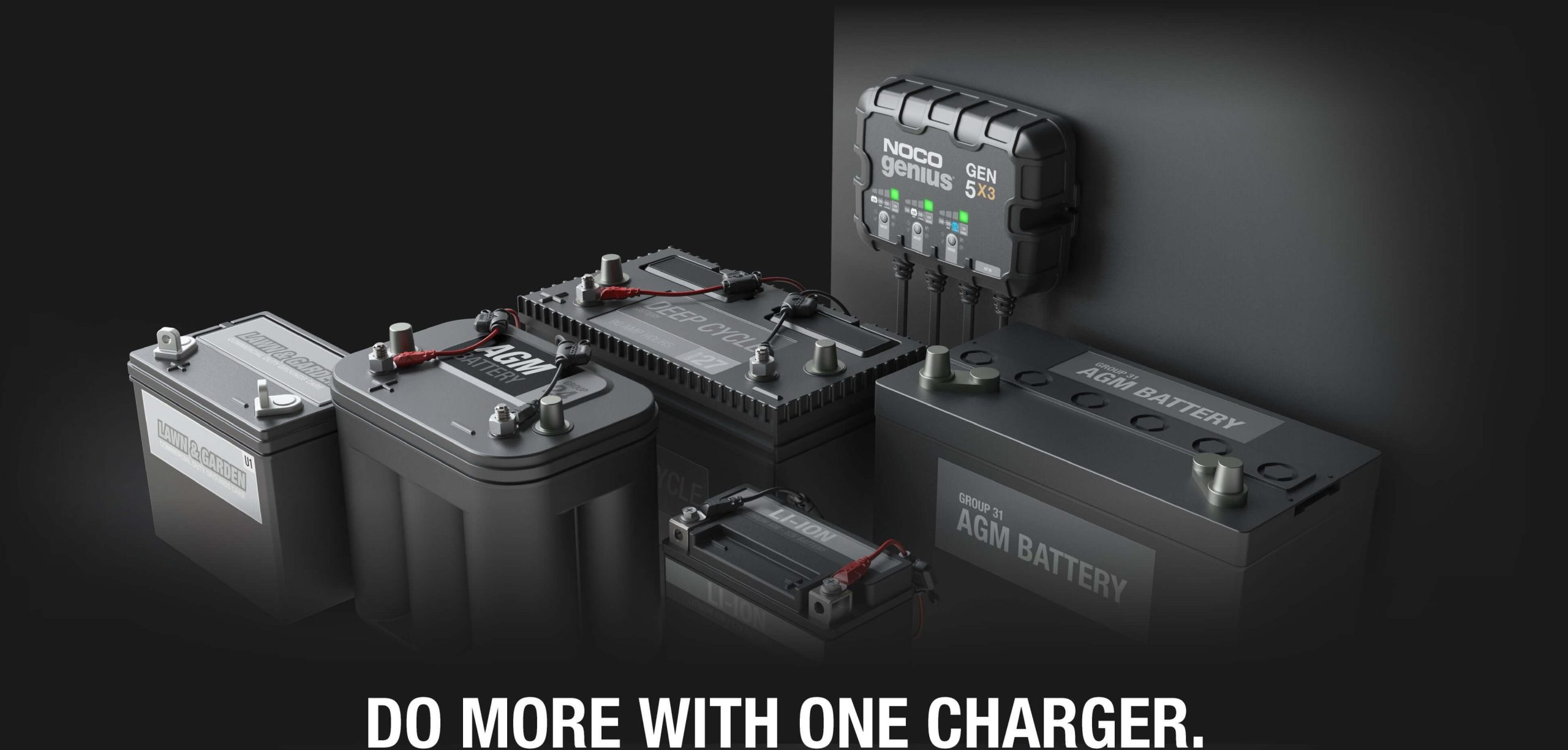

- A three-bank on-board battery charger rated at 15-amps for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries.

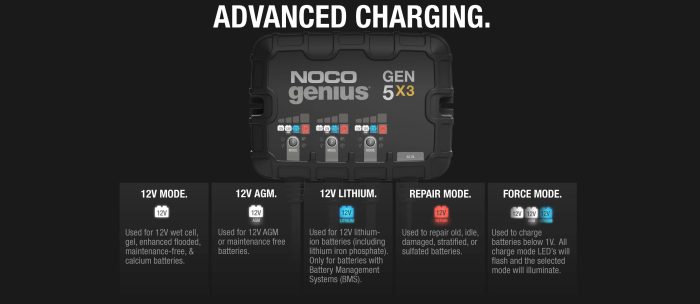

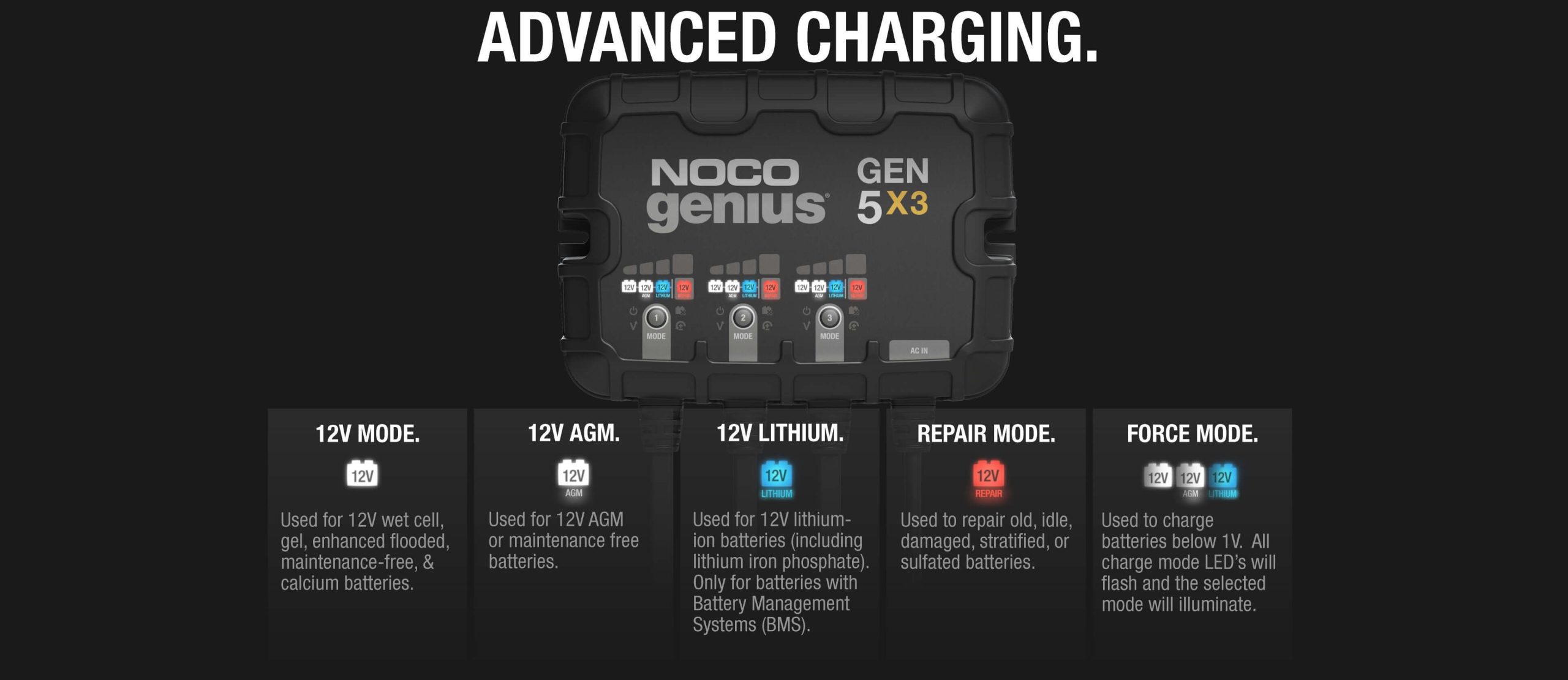

- Independently charge and control each battery bank with selectable charging modes – including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode – for all types of lead-acid and lithium-ion batteries.
- An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates.

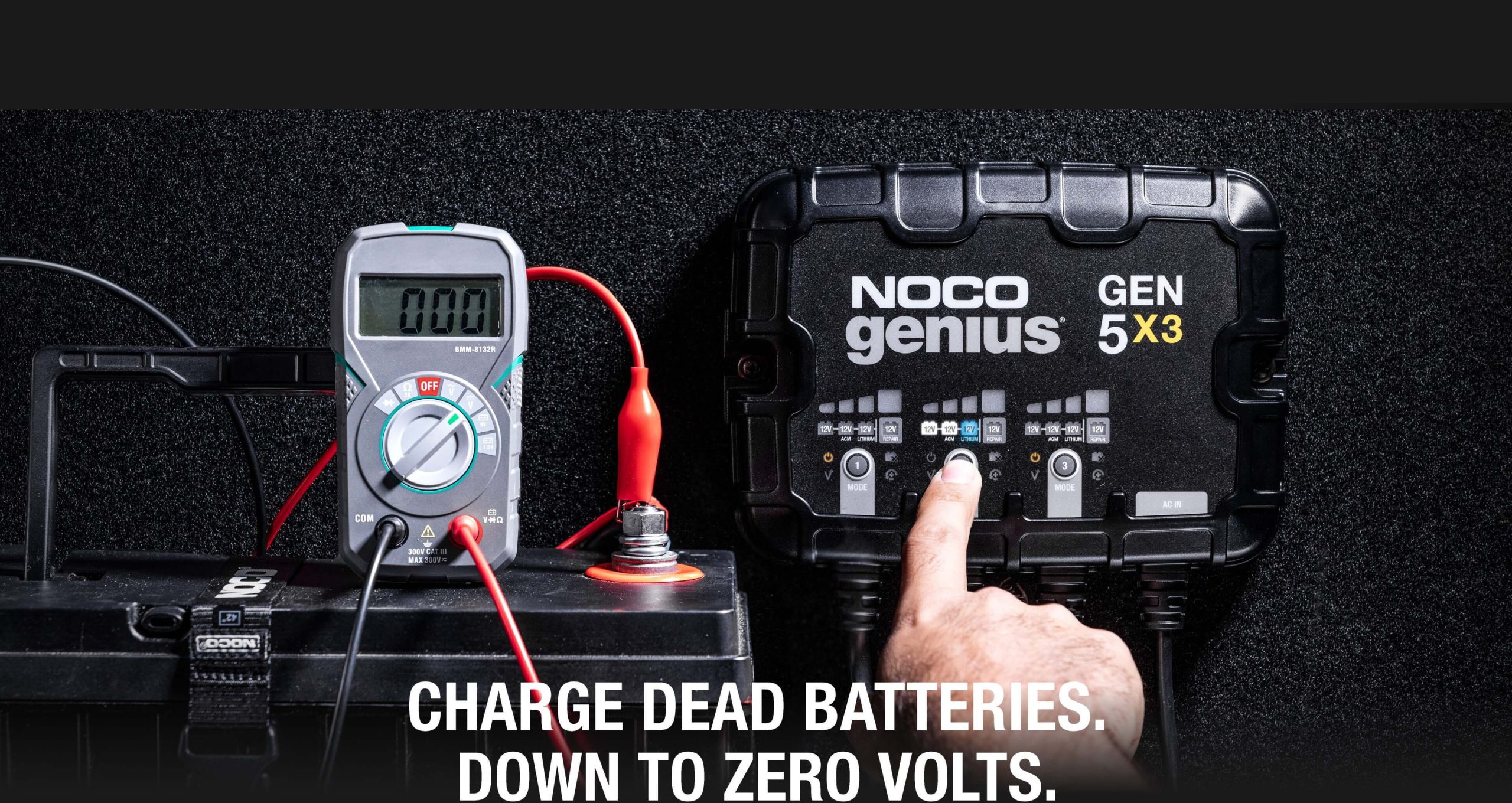

- Charges batteries as low as 1-volt. Or use the all-new force mode that allows you to take control and manually begin charging dead batteries down to zero volts.
- Automatically detects battery sulfation and acid stratification to restore lost battery performance for stronger engine starts and extended battery life.

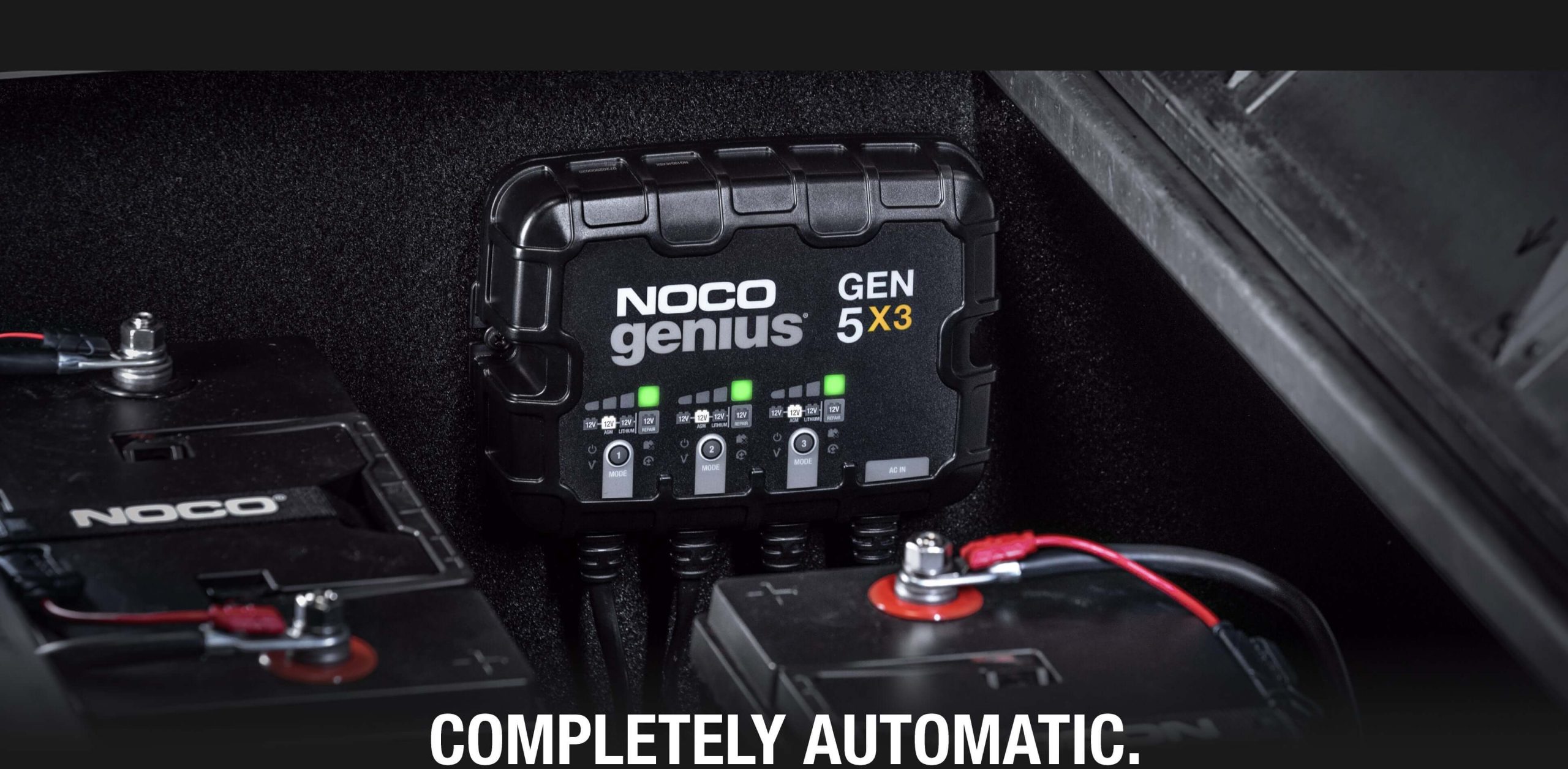

- It’s not just a trickle charger; it’s an advanced battery maintainer. A fully automatic, worry-free battery charger for everyday use – 24/7 – with zero overcharge.
- A simplified mounting system allows for quick and easy installations in any direction – even up-side-down – with an integrated anti-vibration backing to isolate shock, vibration, and noise.

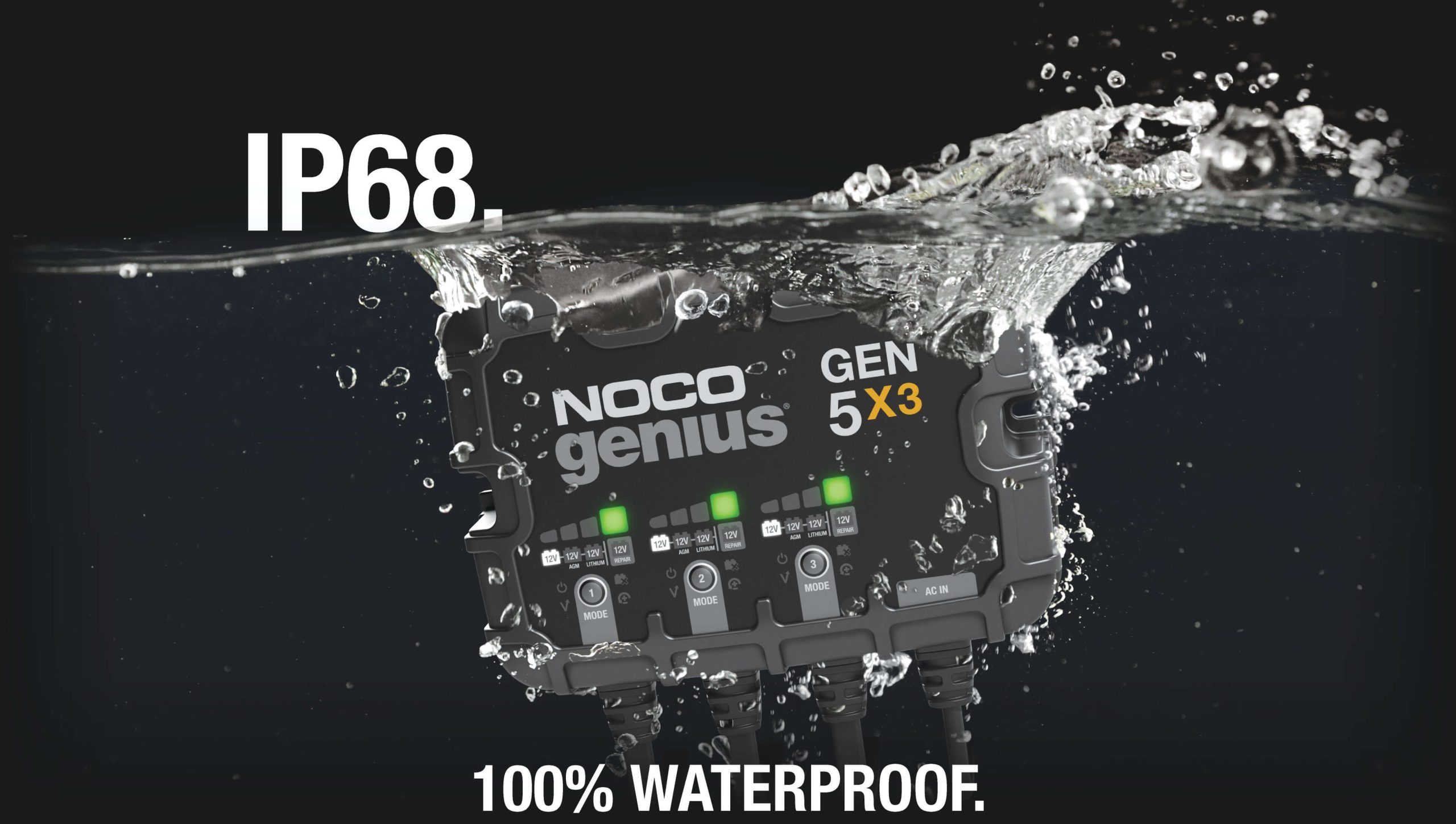

- A fully-sealed and waterproof onboard battery charger with an ingress protection rating of IP68, but has survived brutal life cycle testing, including thousands of hours underwater.
- WARNING: California’s Proposition 65
Technical Specifications

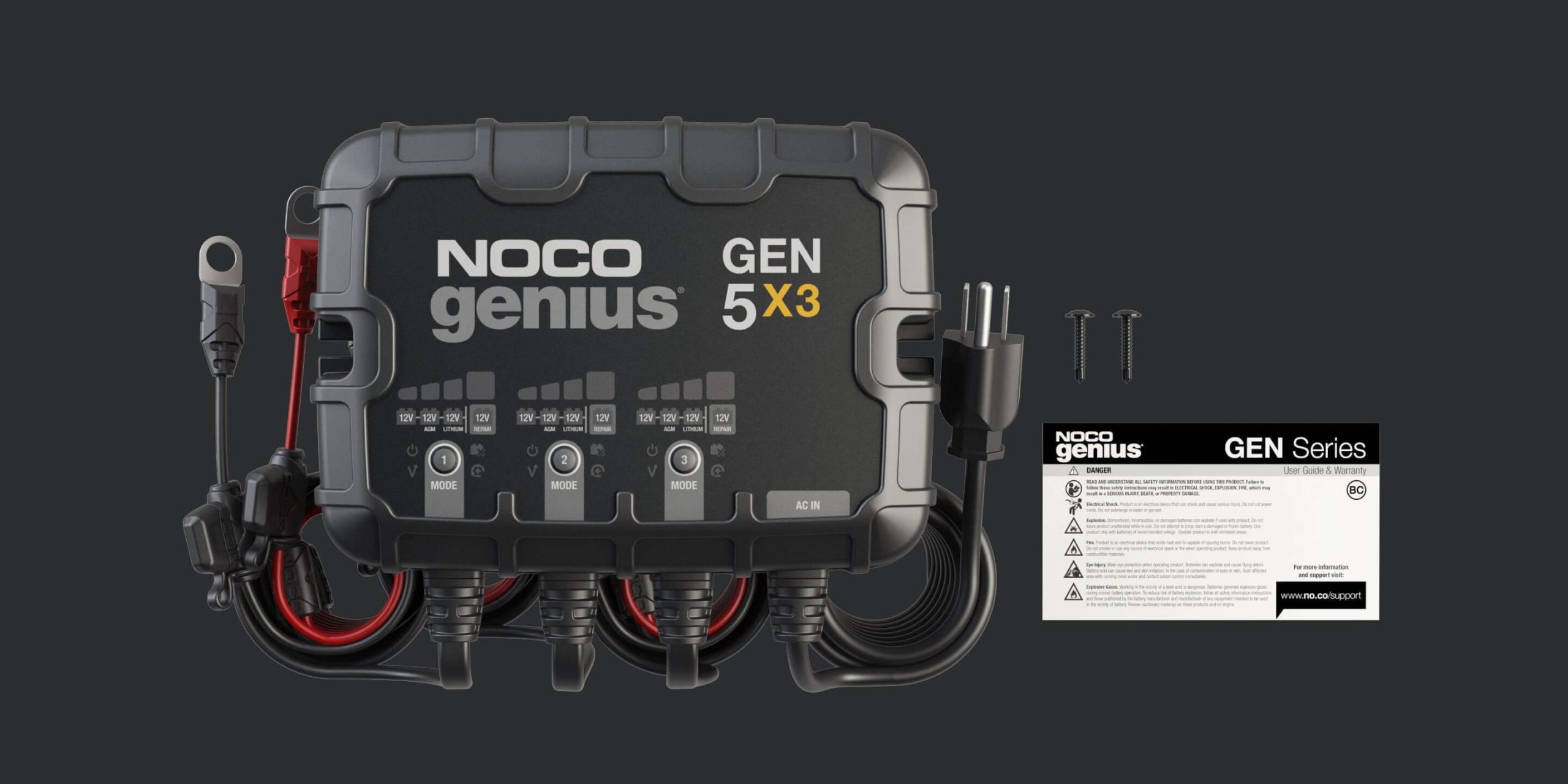

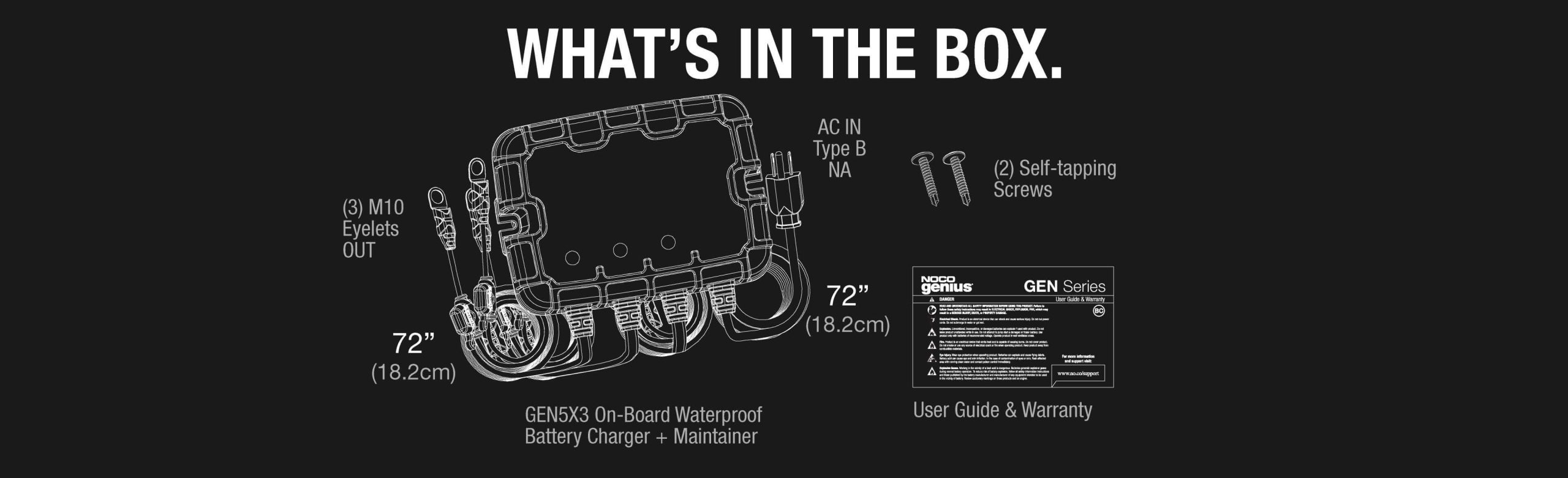

What’s In the Box
- GEN5X3 On-Board Battery Charger
- (2) Self-Tapping Screws
- Safety & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing
Charging
Current: 5 Amps DC x 3 Banks
Voltages: 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Battery Capacity Range: Up to 120 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 220 Watts (Max), 3 Banks
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes

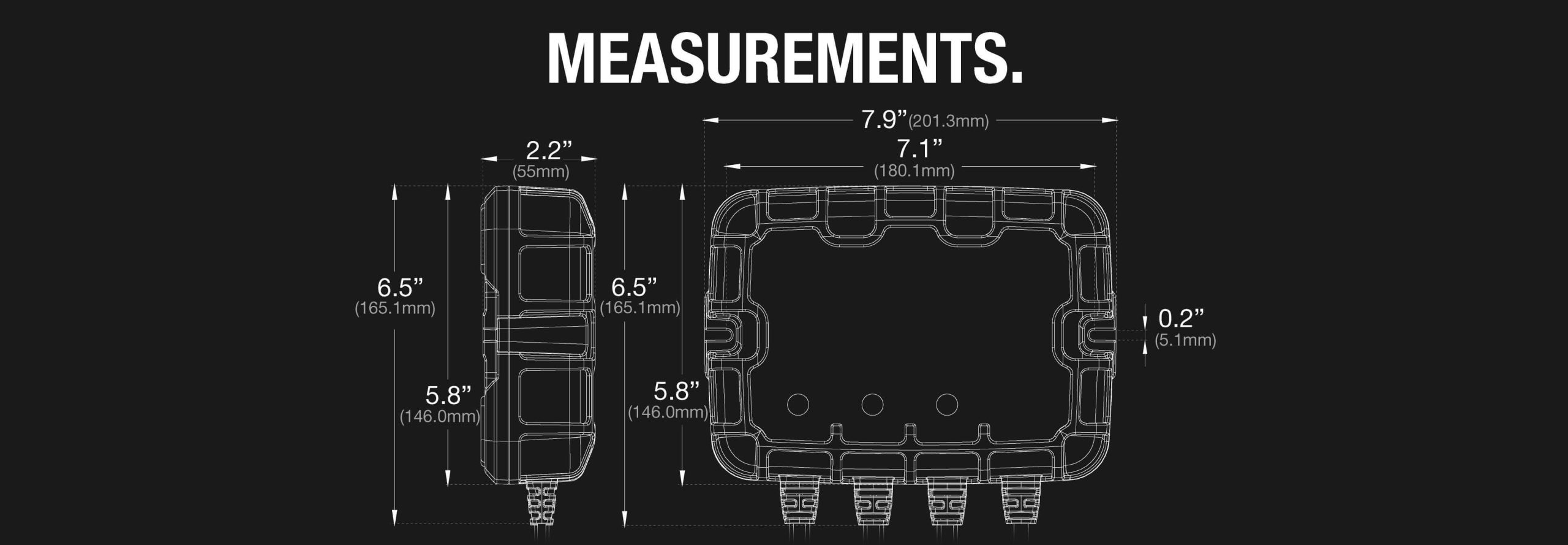

Size
Height: 6.50 Inches (165.1 mm)
Width: 7.93 Inches (201.3 mm)
Depth: 2.17 Inches (55.0 mm)
Weight: 6.1 lbs (2.7 kg)
Cord Management
DC Cable + Eyelet Length: 72 Inches (182cm)
DC Cable Size: 16 AWG
DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
AC Cable Length: 72 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant
IP Rating
IP68
Limited Warranty
3-Year Limited Warranty
