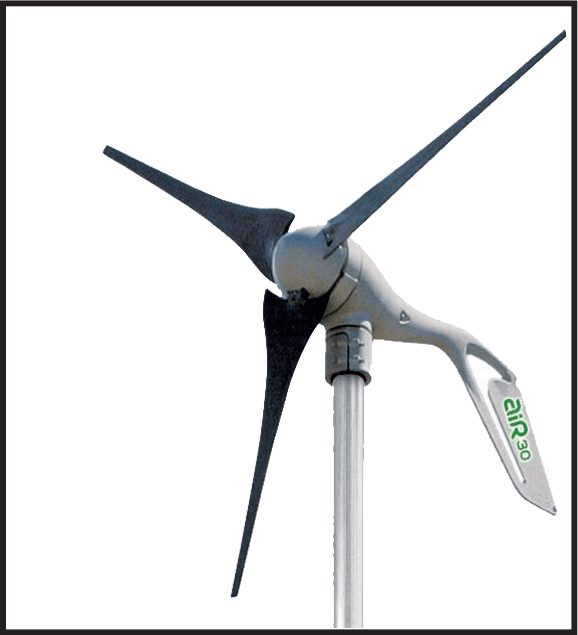

AIR 30 TURBINE

Optimum energy in high wind environments

Highlights

• Made in Denver, Colorado, USA
• 5 Year Warranty and product support from Primus Wind Power
• High-quality, third-party tested components for reliability and safety
• Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
• Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
• Pair with solar PV for redundant energy production year-round.
• Produces 30 kWh of energy a month* for land-based, high wind applications
• Special order item. No returns

Air 30 Certifications

• Restrictive of Hazardous Substances (RoHS) Compliance
• Canadian Standards Association (CSA) International Certificate of Compliance
• CE Declaration of Comformity (for battery charging applications only)

• Download the AIR 30 manual
• Download the AIR 30 spec sheet



  Technical Specifications

  • Energy: Approx. 30 kWh/mo at 5.8 m/s (13 mph)
  • Swept Area: 1.07 m2 (11.5 ft2)
  • Rotor Diameter: 1.17 m (46 in)
  • Weight: 5.9 kg (13 lb)
  • Shipping Dimensions: 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
  • Startup Wind Speed: 3.58 m/s (8 mph)
  • Voltage: 12, 24 and 48 VDC
  • Turbine Controller: Microprocessor-based smart controller
  • Body: Permanent mold cast aluminum
  • Blades: (3) Injection-molded composite
  • Alternator: Permanent magnet brushless
  • Overspeed Protection: Electronic torque control
  • Survival Wind Speed: 49.2 m/s (110 mph)
  • Mount: 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
  • Wind Speed Operating Range: 3.6-22 m/s (8-49 mph)
  • Optimum Wind Speed Range: 11-15 m/s (25-32 mph)

Please note: Tower kit sold separately

Download the Tower Site Selection guide

New to wind turbines? Not sure what model is right for you? Check out the product selection guide HERE
