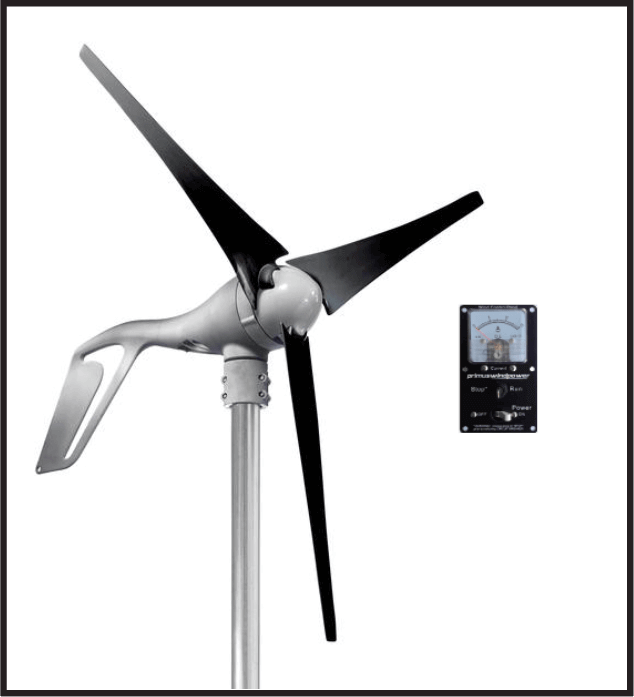

AIR 40 TURBINE + CONTROL PANEL

The proven choice for remote energy

AIR 40 is the premier micro-wind turbine for land-based applications. It operates efficiently across a wide-range of wind speeds, providing energy for telecom, water pumping, lighting, SCADA, off-grid homes, or other low energy demand battery charging applications. The AIR 40 is ideal for pairing with solar to offset seasonal variation, delivering more consistent energy.

Highlights

• Made in Denver, Colorado, USA

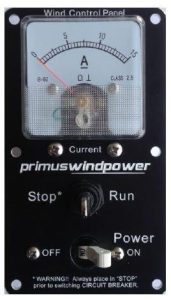

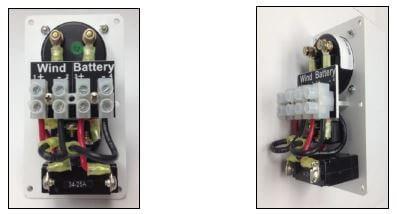

• Includes the Primus Wind Control Panel: Equipped with a power On/Off circuit breaker, analog ammeter (indicating wind turbine current production) and a Stop/Run switch (for direct control of the turbine).
• 5 Year Warranty and product support from Primus Wind Power
• Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
• Blades designed for quieter operation, durability and optimum energy capture in most wind speeds.
• Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
• Pair with solar PV for redundant energy production year-round.
• Produces 40 kWh of energy per month generating energy in a wide range of wind speeds
• Special order item. No returns

Download the AIR 40 manual
Download the AIR 40 spec sheet
Download the Wind Control Panel manual

Technical Specifications

• Energy: Approx. 40 kWh/mo at 5.8 m/s (13 mph)
• Swept Area: 1.07 m2 (11.5 ft2)
• Rotor Diameter: 1.17 m (46 in)
• Weight: 5.9 kg (13 lb)
• Shipping Dimensions: 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
• Startup Wind Speed: 3.1 m/s (7 mph)
• Voltage: 12, 24 and 48 VDC
• Turbine Controller: Microprocessor-based smart controller
• Body: Permanent mold cast aluminum
• Blades: (3) Injection-molded composite
• Alternator: Permanent magnet brushless
• Overspeed Protection: Electronic torque control
• Survival Wind Speed: 49.2 m/s (110 mph)
• Mount: 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
• Wind Speed Operating Range: 3.1-22 m/s (7-49 mph)
• Optimum Wind Speed Range: 4.5-22 m/s (10-49 mph)

Please note: Tower kit sold separately

Download the Tower Site Selection guide

New to wind turbines? Not sure what model is right for you? Check out the product selection guide HERE

Wind Power Air 40 + Control Panel
