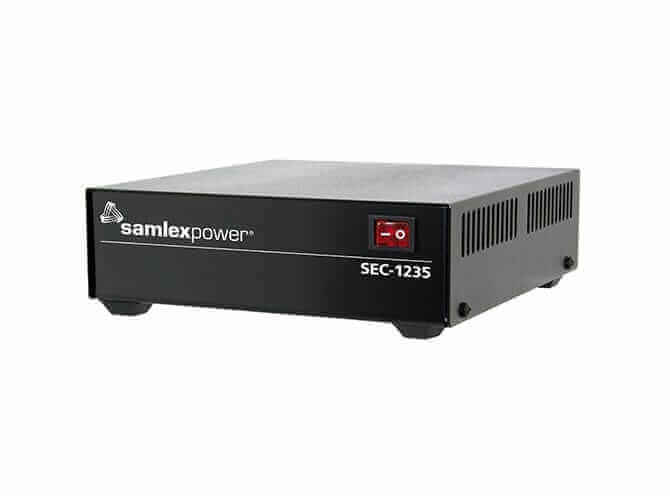

Model: SEC-1235

These high-efficiency UL-60950-1 approved AC-DC power converters provides a highly regulated output DC voltage of 13.8 Volts (12 Volt Nominal). With an advanced switch-mode power supply, you can service up to 30 Amp @ 12vDC continuously with a standard 120vAC input @ 60Hz.

The SEC-1235 are ideal for applications where a device or appliance requires continuous and reliable 12vDC power. Examples would be:

• The SunStar line of solar/DC refrigerators and freezers (1 x SEC-1235 can easily service 2 appliances)
• Cinderella Freedom incineration toilet (1 x SEC-1235 can service the Cinderella Freedom in addition to the above appliances)
• Applications which have less than a 30A @ 12vDC requirement i.e. one of the above mentioned appliances + 12vDC lighting strings, 12vDC diaphragm pump, 12vDC fans, etc.

The power supply produces clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with standard NEMA 5-15P plug.

Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Downloads:

SEC-1235 Spec Sheet
SEC-1235 Product Manual

Specifications:

Input: 100-130 VAC
Output: 13.8 VDC
Amps: 30 Amps
Fuse: 8 Amps
Weight: 3.4 (lbs)
Weight: 1.54 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 18.5 x 20.8 x 6.1 (cm)
Safety: UL, FCC

3 Year Limited Warranty



120vAC to 12vDC SEC 1235 Converter
