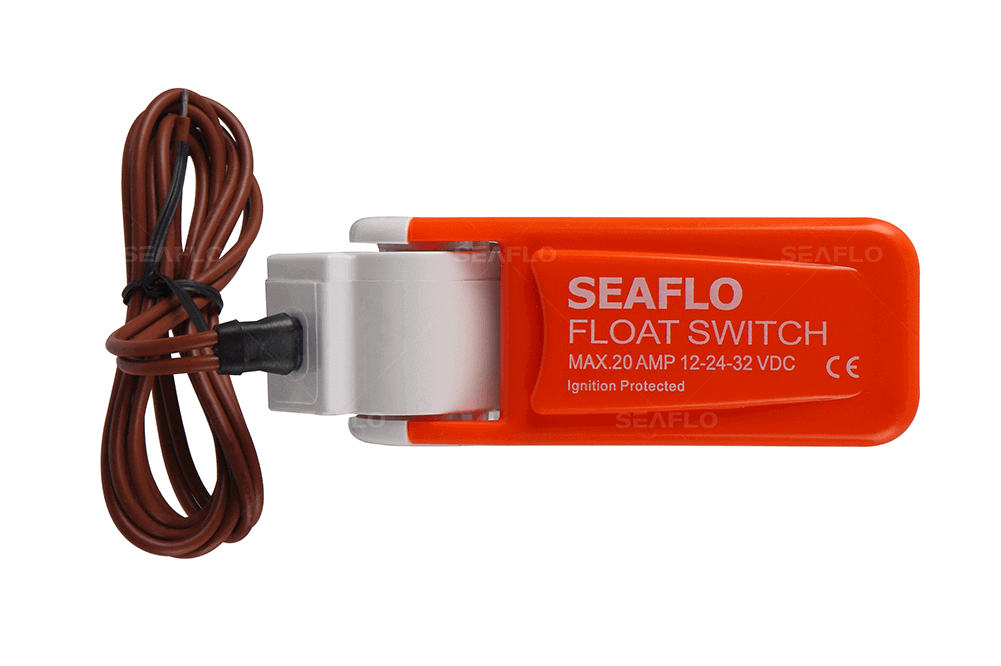

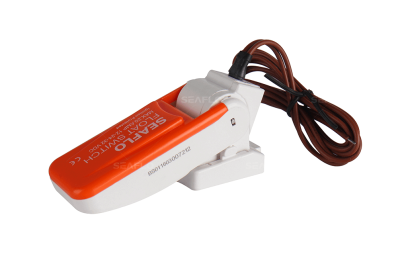

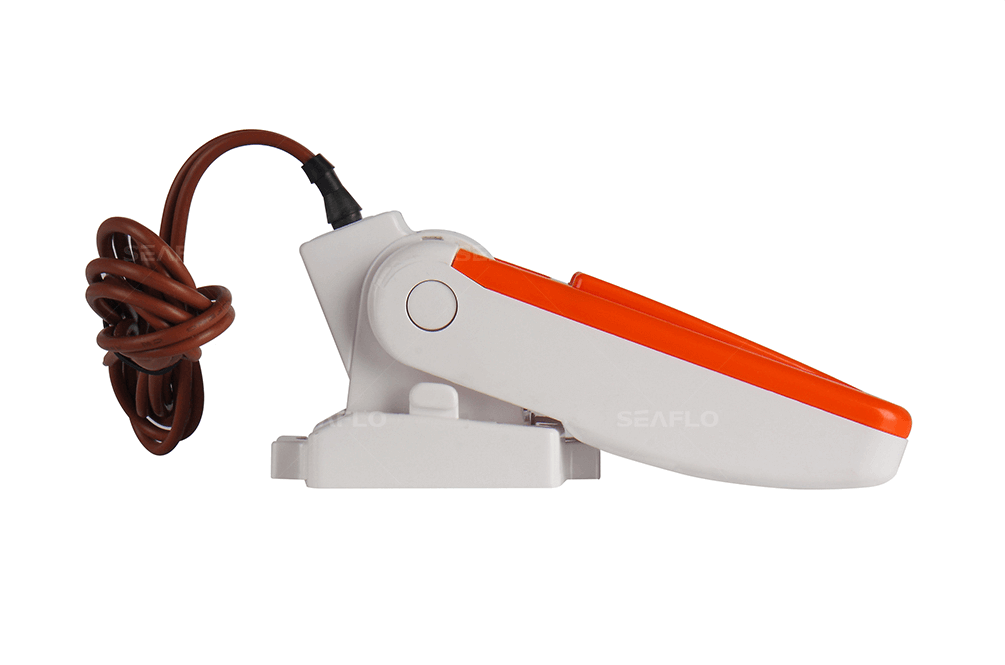

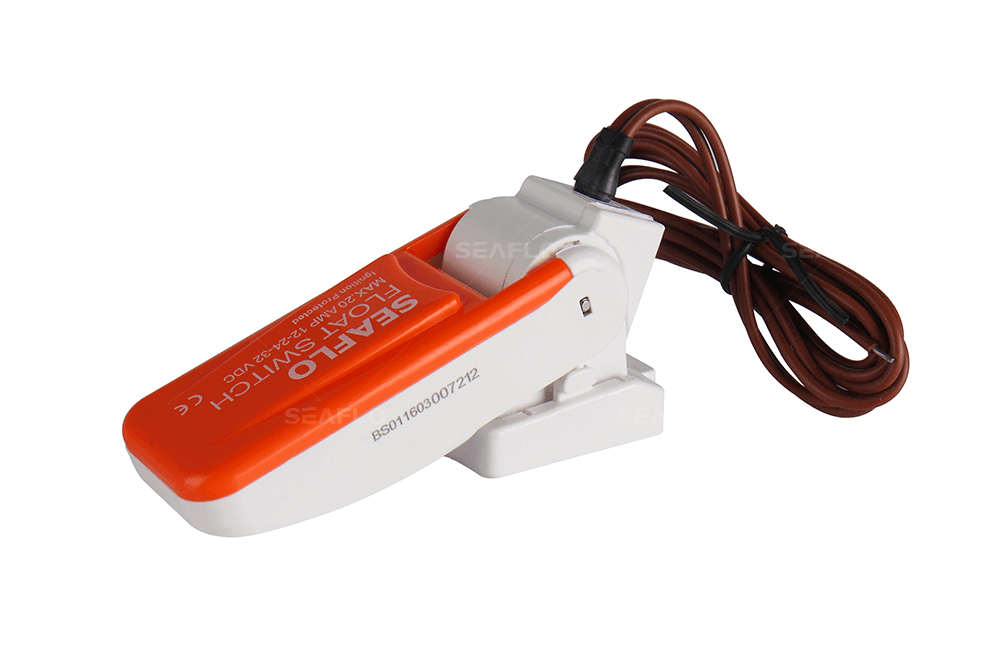

SEAFLO Pump Float Switch
For 12v, 24v, or 36v pumps drawing up to 20 amps. SEAFLO float switches are designed for use with fresh water or salt water systems including holding tanks and bilge pumps.

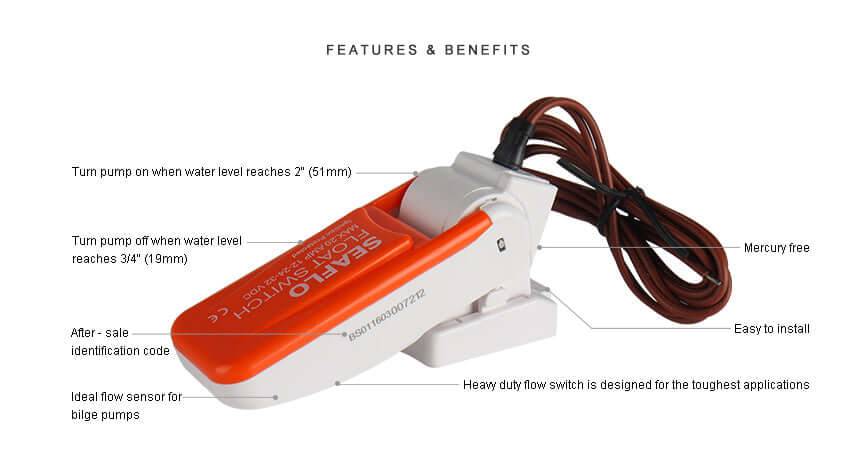

FEATURES & BENEFITS
– Ideal flow sensor for bilge pump.
– 20A max.
– Suitable for use with 12v DC, 24v and 32v DC bilge pumps.
– Heavy duty flow switch is designed for the toughest applications.

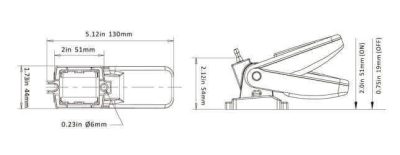

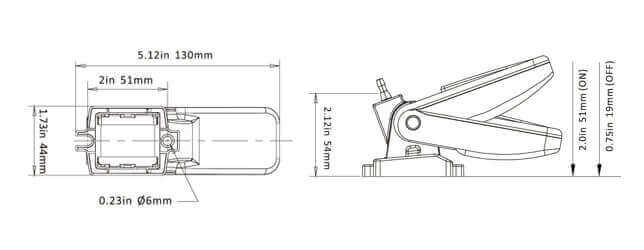

– Turns pumps on when water level reached 2.0’’(51mm).

STANDARD PUMP CONFIGURATIONS

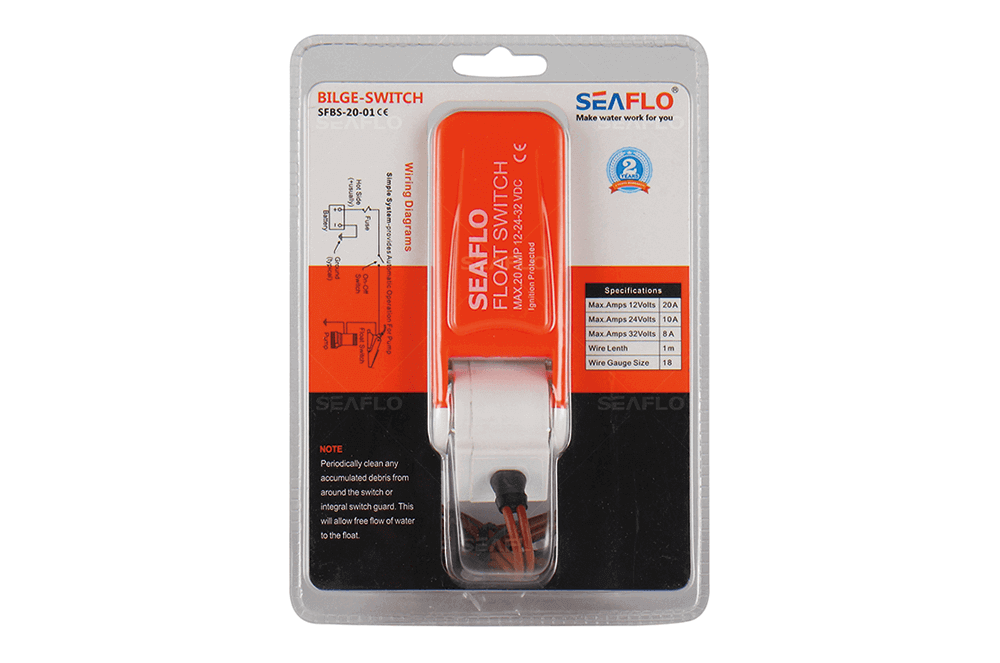

Model: SFBS-20-01
Max Amps 12Volts: 20 A
Max Amps 24Volts: 10 A
Wire Lead: 3′
Wire Gauge Size: 18 AWG
N.W. / G.W.: 0.16/0.18 kg
